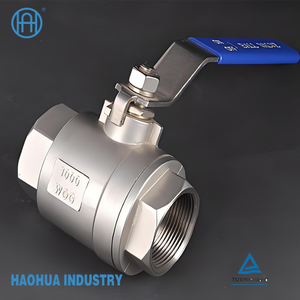

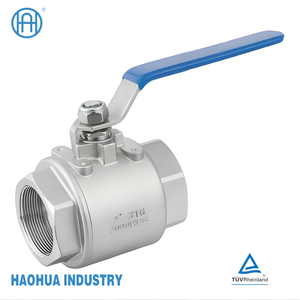

Product Description
The high - quality stainless steel construction endows it with remarkable corrosion resistance, ensuring durability in diverse environments. With its 90 - degree handle rotation for quick on/off control and precise ball - seat sealing, it effectively prevents leakage. This valve finds extensive application in water supply, HVAC, and industrial sectors, available in a range of sizes and pressure ratings to precisely match various pipeline requirements, providing reliable and efficient fluid control solutions.
Product Parameters
| NO. | Part name | Material |
| 1 | Body | Cf8 CF8M |
| 2 | Bonnet | Cf8 CF8M |
| 3 | Seat | PTFE |
| 4 | Ball | SS304 SS316 |
| 5 | Steal Gasket | PTFE |
| 6 | Stem Seal | PTFE |
| 7 | Stem | SS304 SS316 |
| 8 | Anit-static Device | SS304 |
| 9 | Stem Packing | PTFE |
| 10 | Packing Gland | SS304 |
| 11 | Spring Waster | SS304 |
| 12 | Handle | SS304 |
| 13 | Nut | SS304 |
| 14 | Handle Cover | PLASTIC |
| 15 | Thrust Washer | SS304 |
| Dimension List | |||||
| NPS | DN | D | L | H | W |
| 1/4 | 6 | 5 | 40 | 34 | 70 |
| 3/8 | 10 | 7 | 44 | 36 | 70 |
| 1/2 | 15 | 9 | 55 | 39 | 80 |
| 3/4 | 20 | 12 | 58 | 43 | 90 |
| 1 | 25 | 15 | 68 | 46 | 105 |
| 1-1/4 | 32 | 20 | 77 | 53 | 120 |
| 1-1/2 | 40 | 25 | 81 | 59 | 130 |
| 2 | 50 | 32 | 96 | 65 | 145 |
| 2-1/2 | 65 | 38 | 119 | 74 | 170 |
| 3 | 80 | 49 | 135 | 105 | 185 |
| 4 | 100 | 65 | 180 | 120 | 215 |

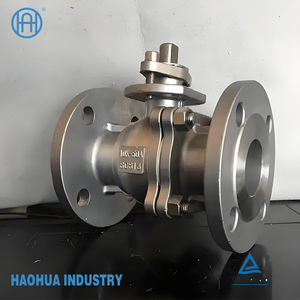

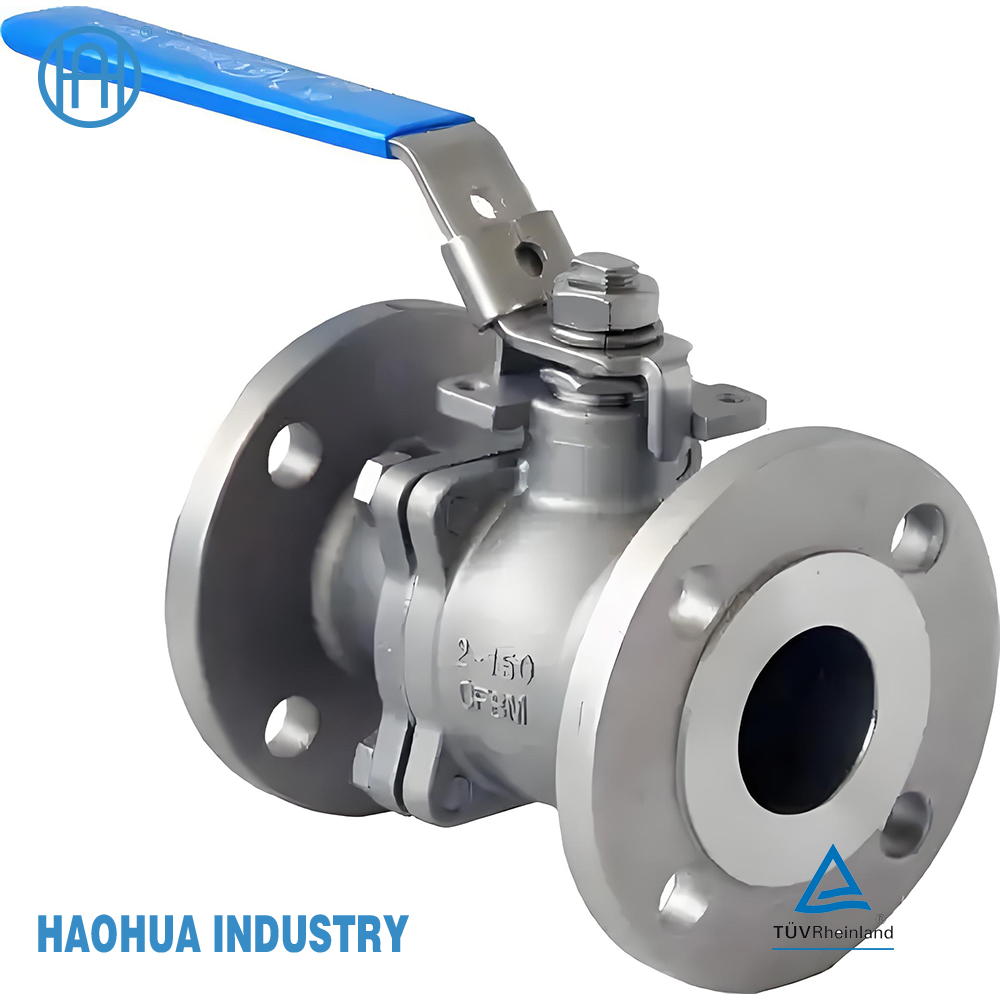

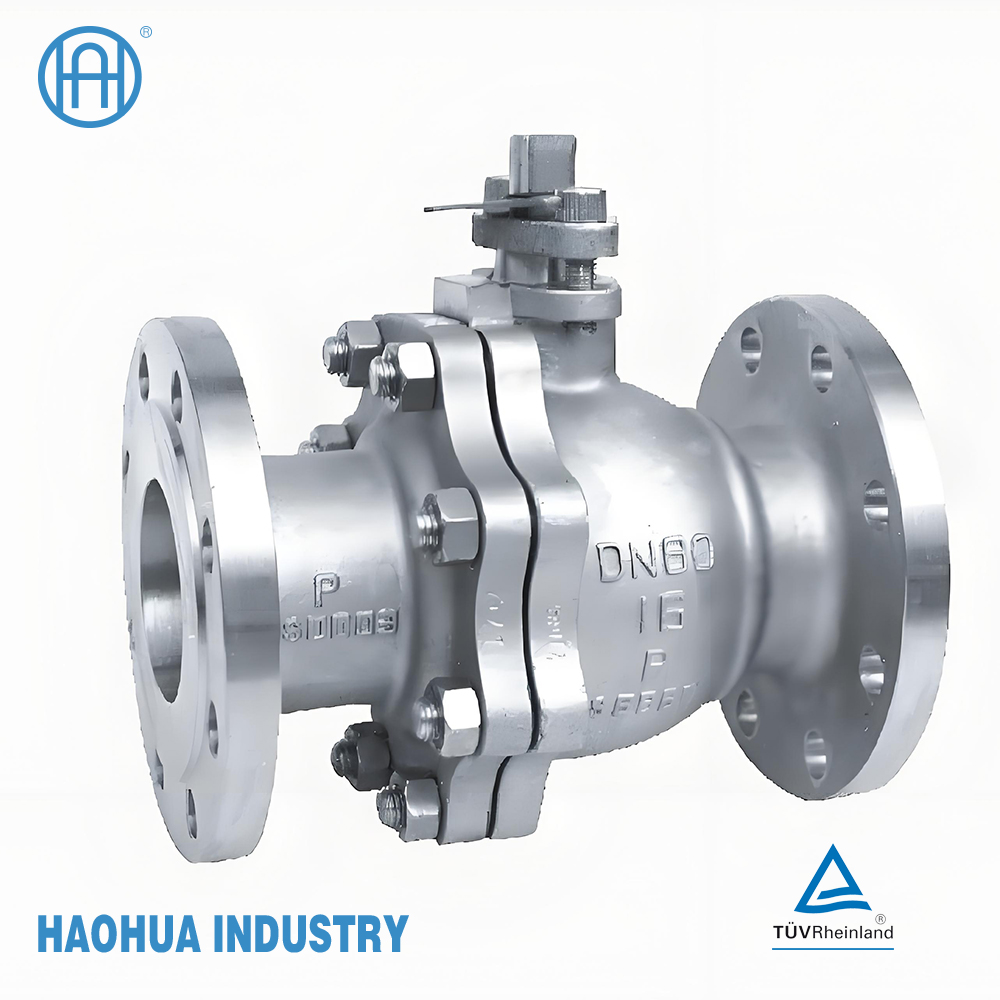

| 2pc ss304 flanged ball valve | |
| 1,Size ranging | 1/2"-12" |
| 2,Materials | SS304, SS316,CF8M,CF8,WCB |
| 3,Casting | Investment |
| 4,Working pressure | 150LB |
| 5,Applicable temperature | -40-210 degree C |
| 6,Applicable medium | Water, Oil, Gas, etc |
| 7,End connection | Flanged |
| 8, MOQ | 10PCS |
| 9,Capacity to produce | 20,000,00 PCS per month |
| 10,Packaging | Inner CTN, outside ply-wooden cases |
| 11,Price term: | EXW, FOB, CIF, CFR |
| 12,Payment term | T/T, L/C |
| 13,Standard | CE,ISO9001 |
