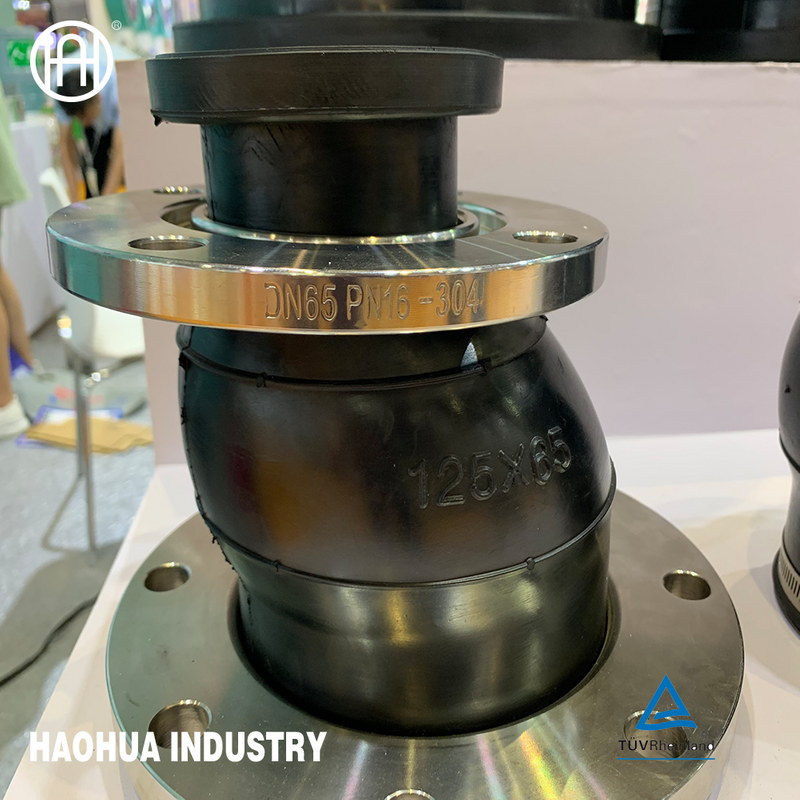

Flanged Connector Coupling Pipeline Bellows Compensator EPDM Flexible Rubber Expansion Joint

After-sales service: Yes
Connection mode: Flange
Type: Horizontal
Head shape: Round
Finish: Silver Plating


Availability:
Quantity:

Expansion Joint Feature:
1) Nonmetal expansion joint
2) Absorbs thermal expansion and shock
3) Structure: bellows + flat welding flanges
4) Main material, bellows : stainless steel 304; flanges: stainless steel 304 or carbon stee
5) Compensates converting misalignment
6) Compensates for exhaust converter misalignment
7) It is obtained ISO9001-2000 International Quality Certificated.
8) Expansion Joints are determined as " The Best Products of Chinese Technology" by China Technological Enterprise council and our company has the right of products Import & Export
9) They are also insured the product quality liability insurance by PICC
10) Size, diameter and length can be produced as per clients' requirements

Material
Sus304,321,310S,316L,etc.
Size available
Φ25mm~φ7000mm
parts
Flange, bellows, internal sleeve, tie-rod, pipe end, nut
bellows layers
1-6 layers
Threads
DIN, BSPT, BSP, NPS, NPT, Metric, (ISO7/1, DIN 2999, ANSI B1.20.1)
Flange Drilled
JIS,JB,BS, DIN, ANSI, or others provided drawing samples
Surface
Carbon steel flange galvanized or AL painted
Normal Specification
ID40~600mm,overall length:300~400mm
Application temperature
-50~300°C
Usage
For the chemical industry, metallurgy, electricity, shipbuilding, construction and other industries
feature
Easy cleaning and maintenance
To resolve minor deviation because of pipe connection and eliminate the pipeline residual stress
