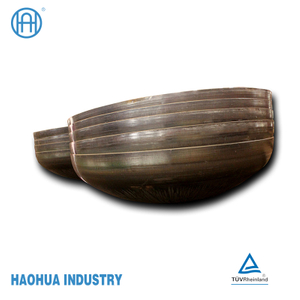

Elliptical Head

Model NO: Elliptical Head
Storage Medium: Tank etc.
Pressure Level: High Pressure (10.0MPa≤p<100.0MPa)
Condition: New
Transport Package: Frame Box, Tarpaulin Packing, etc.
Specification: 1/2"-48"inch, DN15MM-DN1200MM
Trademark: haohua
Origin: China
Production Capacity: 50000PC/Year

Company Introduction

HAOHUA INDUSTRY offers the widest variety of sizes available in the industry. All of our products are domestically sourced, developed, and produced, which means our customers have immediate access to exactly the products they need for their particular application. And you are assured of the highest quality and manufacturing standards and a local, concerned, customer service presence.


Product Description

Factory Price Large Asme Dished End Dish Head Customized Carbon Steel Elliptical Tank Head

Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for pressure tanks due to the reduced metal thickness requirement.


 1/2''-48'' inch, DN15MM-DN1200MM


 Carbon steel, Stainless steel, Aluminum, Titanium, etc. According to

 customers' requirement


 2~8mm, or as per customers' requirement


 Hot pressing, cold pressing

 Surface treatment

 Rust-proof oil, black painted or as per customers' requirement




 ASME/ANSI B16.9  ASME B16.5  DIN2605  MSS SP-43  JIS B2311 HGJ514


 Storage tank, heat exchanger, tower, reaction kettle, boiler and

 separation equipment in Chemical /Petroleum /Power /Building /Ship-  building Industry and other industries


 Plywood case/pallet, steel pallet or as per customers' requirement


 T/T, L/C


 15-25days after prepayment or as per customers' requirement
