Astm Gr1 Gr2 Gr3 Gr5 Gr7 Gr4 TA1 Grade2 Titanium Plate Titanium Sheet

Model NO:Tianium Plate
Specification: Customizable
Trademark: HAOHUAOrigin: China
HS Code: 810890
Production Capacity: 1000000kgs/Year

Availability:
Quantity:

Company Introduction
HAOHUA INDUSTRY offers the widest variety of sizes available in the industry. All of our products are domestically sourced, developed, and produced, which means our customers have immediate access to exactly the products they need for their particular application. And you are assured of the highest quality and manufacturing standards and a local, concerned, customer service presence.

Product Description

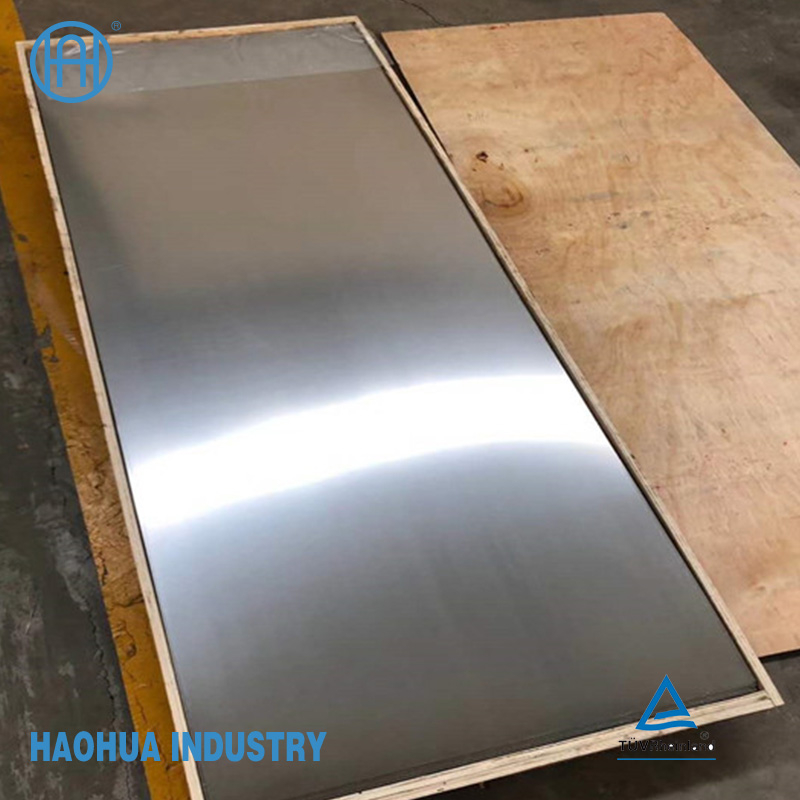

Astm Gr1 Gr2 Gr3 Gr5 Gr7 Gr4 TA1 Grade2 Titanium plate Titanium sheet

What is Titanium
Titanium has a metallic luster and is malleable. The density is 4.5 g/cm3. Melting point 1660±10°C. Boiling point 3287 °C. Valence + 2, +3 and +4. The ionization energy is 6.82 eV. The main features of titanium are low density, high mechanical strength, and easy processing. The plasticity of titanium depends mainly on purity. The purer the titanium, the greater the plasticity. It has good corrosion resistance and is not affected by the atmosphere and seawater. Under normal temperature, it will not be corroded by 7% or less of hydrochloric acid, 5% or less of sulfuric acid, aqua regia or dilute alkali solution;  concentrated hydrochloric acid, concentrated sulfuric acid, etc. can act on it.

Titanium oxide film on the surface of the plate is equivalent to a good durability separating agent. Using titanium sheet can save the separating agent , make sheet easy to strip, To get rid of the process of titanium plate processed in advance. Titanium sheet is lighter than copper sheet.
The service life of titanium sheet is more than 3 times than copper plate, and according to operating conditions, the servicr life of titanium sheet is up to 10 to 20 years.
The electrolytic copper crystal made by titanium sheet have compact structure, smooth surface, excellent quality.
Using titanium sheet can avoid the pollution of copper electrolyte, because titanium sheet don't need to daub separating agent.
Titanium sheet can improve productivity, reduce the production cost of electrolytic copper, so titanium sheet can make good economic benefit.

Product Description:
Gr1 Gr2 Gr5 Titanium Plate / Gr1 Gr2 Gr5 Titanium Sheet
Material:
Pure Titanium,Titanium Alloy
Standard:
ASTM B265 JIS H4600 GB/T 3620.1
Grades:
ASTM Pure Ti: Gr.1 Gr.2 Gr.3 Gr.4 Ti Alloy: Gr.5 Gr.7 Gr.9 Gr.11
JIS Pur Ti: Class 1 Class 2 Class 3 Class 4;Ti Alloy: Class 60 Class 12 Class 61 Class 11 Class 60 E
GB Pure Ti:TA1 TA2 TA3 TA4;Ti Alloy: TC4 TA9 TC2 TC4 ELI
Technique:
Cold Rolled,Hot Rolled,Annealing,Pickling or be required
Color:
Honed
Size:
Thickness: 0.5-30mm Width:600-2500  Length:1000-3000mm
Price Term:
CIF CNF/CFR FOB Ex-work
Application:
Electronics, medical and chemical industry, petroleum, pharmaceutical, aerospace, etc.
